Click image to enlarge

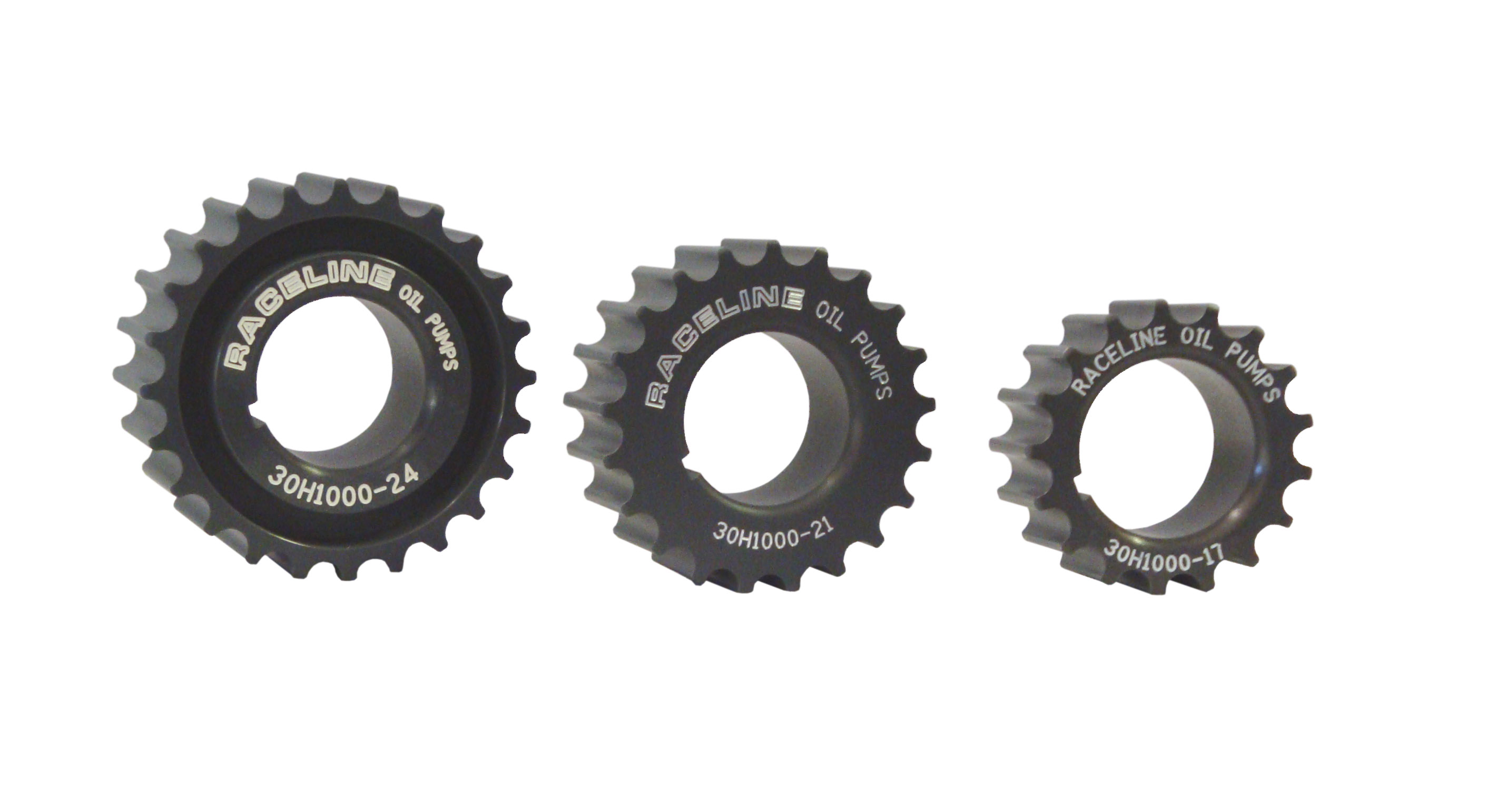

PART NUMBER - # OF TEETH

30H1000-17 - 17 TEETH
30H1000-18 - 18 TEETH
30H1000-19 - 19 TEETH
30H1000-20 - 20 TEETH
30H1000-21 - 21
TEETH
30H1000-22 - 22 TEETH
30H1000-23 - 23 TEETH
30H1000-24 - 24 TEETH

30H1000-25 - 25 TEETH

htd crank pulley 1"

HTD Crank Pulley
8mm Pitch
1.000" ID

30H1125-17 - 17 TOOTH
30H1125-18 - 18 TOOTH
30H1125-19 - 19 TOOTH
30H1125-20 - 20 TOOTH
30H1125-21 - 21 TOOTH

30H1125-22 - 22 TOOTH
30H1125-23 - 23 TOOTH
30H1125-24 - 24 TOOTH
30H1125-25 - 2T TOOTH

Crank pulley HTD 1.125"

HTD Crank Pulley
8mm
Pitch
1.125" ID

31H0625-24 - 24 TEETH
31H0625-32 - 32 TEETH
31H0625-35 - 35 TEETH
31H0625-36 - 36 TEETH
31H0625-37 - 37 TEETH
31H0625-40
- 40 TEETH

HTD Oil Pump Pulley

HTD Oil Pump Pulley
8mm
Pitch

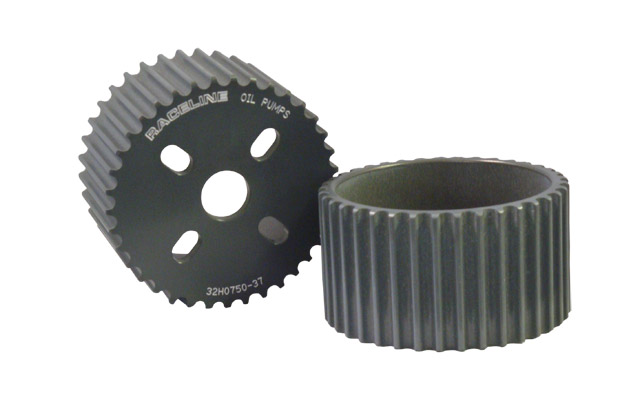

32H0750-35 - 35 TEETH
32H0750-37 - 37 TEETH
32H0750-42 - 42 TEETH
32H0750-44 - 44 TEETH

Water Pump Pulleys

HTD Water Pump Pulley
8mm Pitch

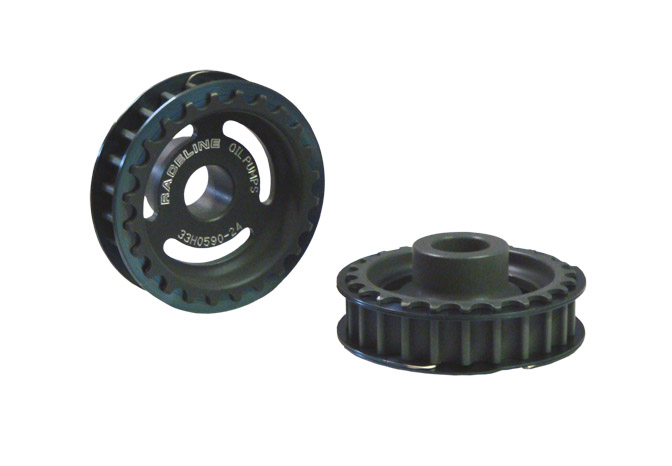

33H0590-24 - 24 TEETH, .590" ID
33H0669-24 - 24 TEETH, .669" ID

Alternator Pulley 24T

HTD Alternator Pulley
8mm Pitch

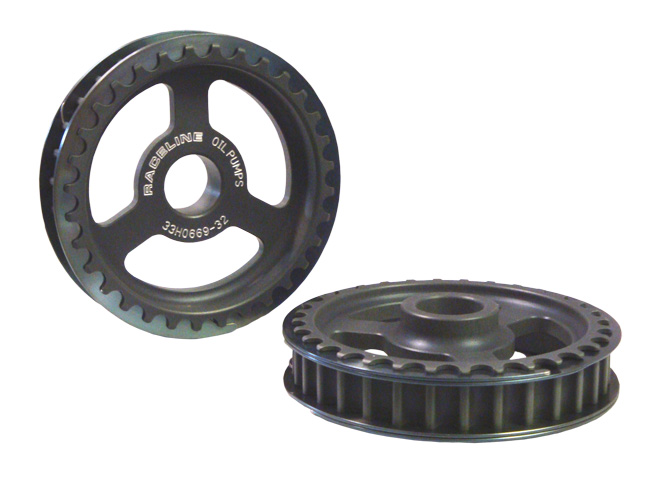

33H0590-32 - 32 TEETH, .590" ID
33H0669-32 - 32 TEETH, .669" ID

Alternator Pulley 32 Tooth

HTD Alternator Pulley
8mm Pitch

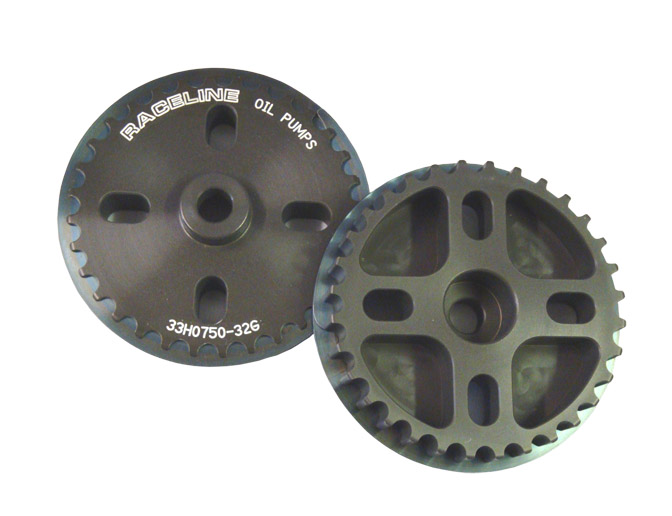

33H0750-32 - 32 TEETH
WATER PUMP MOUNT

CLICK TO VIEW INSTALLATION

HTD Alternator Pulley 32T WP Mount

HTD Alternator Pulley
8mm Pitch

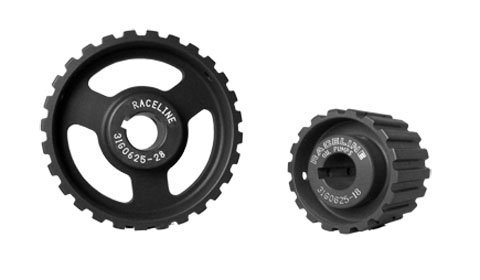

31G0625-18- 18 TEETH
31G0625-28
- 28 TEETH

Gilmer Oil Pump Pulley

GILMER Oil Pump Pulley
3/8" Pitch

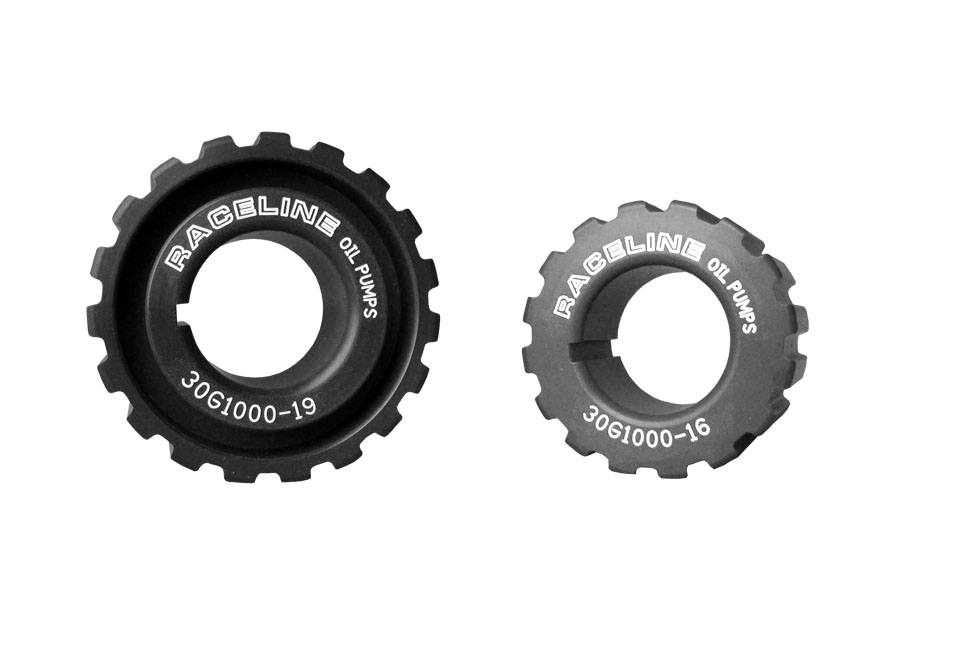

30G1000-16 - 16 TEETH
30G1000-19
- 19 TEETH

Crank Pulley Gilmer 1"

GILMER Crank Pulley
3/8" Pitch
1" ID

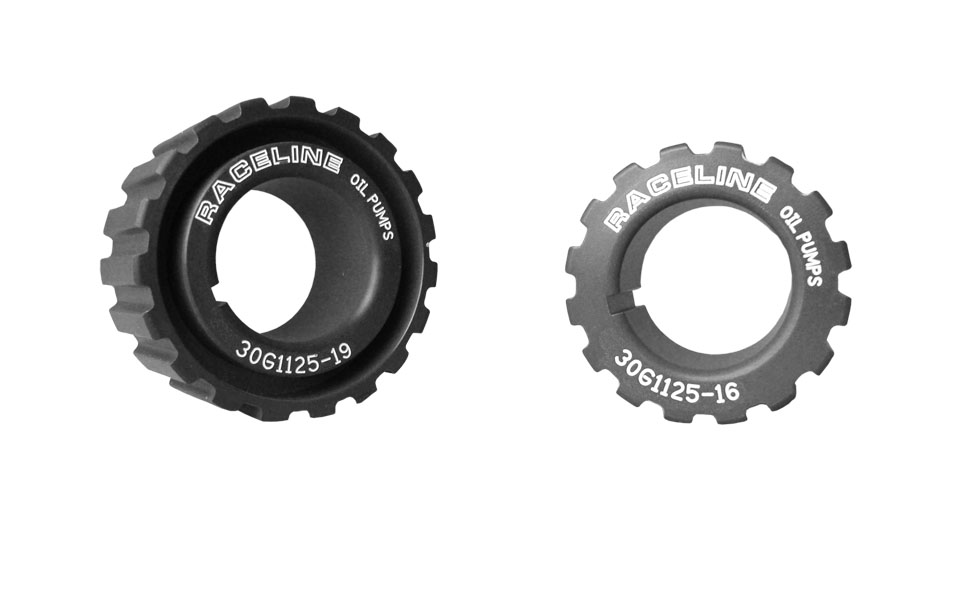

30G1125-16 - 16 TEETH
30G1125-19
- 19 TEETH

Crank Pulley Gilmer 1.125"

GILMER Crank Pulley
3/8" Pitch
1.125" ID

TOP
